Product Description
Check Weigher model CW-N220
Features:
*Strong stainless steel structure; Water proof design.
*High accurate load cell; Based on advanced DSP technology.
*Automatic weighing compensation and zero tracking.
*100 kinds of products preset; easy to edit and recall.
*2000 pieces sorting products records with RS232 printer interface.
*USB interface, USB disk record sorting data.
*Quickly different products shift and speed recall.
*LCD Touch screen; friendly operation interface.
*automatical rejection system with alarm light, such as air nozzle rejector, pusher rejector, arm flap rejector.
* products traveling direction: from left to right, can also from right to left.
Specifications:
Measurement: Strain Gauge
Reception system: air nozzle rejector, pusher rejector or arm flap rejector
Operation: Touch Screen or HMI
Alarm: Buzzer & Lamp
Belt speed: (31-80)m/min
Power Supply: AC110V/220V 50-60Hz
Rated Output: Appr.150W
Dimension:1516mm(L)*600mm(W)*1350±50mm(H)
Weight: Appr.75kg+45kg
Main Data:
|
Model
|
CW-N220
|
|
Weighing Range
|
5g~1200g
|
|
Maximum Accuracy
|
±0.5g
|
|
Minimum Scale
|
0.1g
|
|
Maximum Speed
|
150pps
|
|
Product Size
|
Length
|
<=350mm
|
|
Width
|
<=220mm
|
|
Height
|
>=3mm
|
Payment Terms︰
T/T, L/C

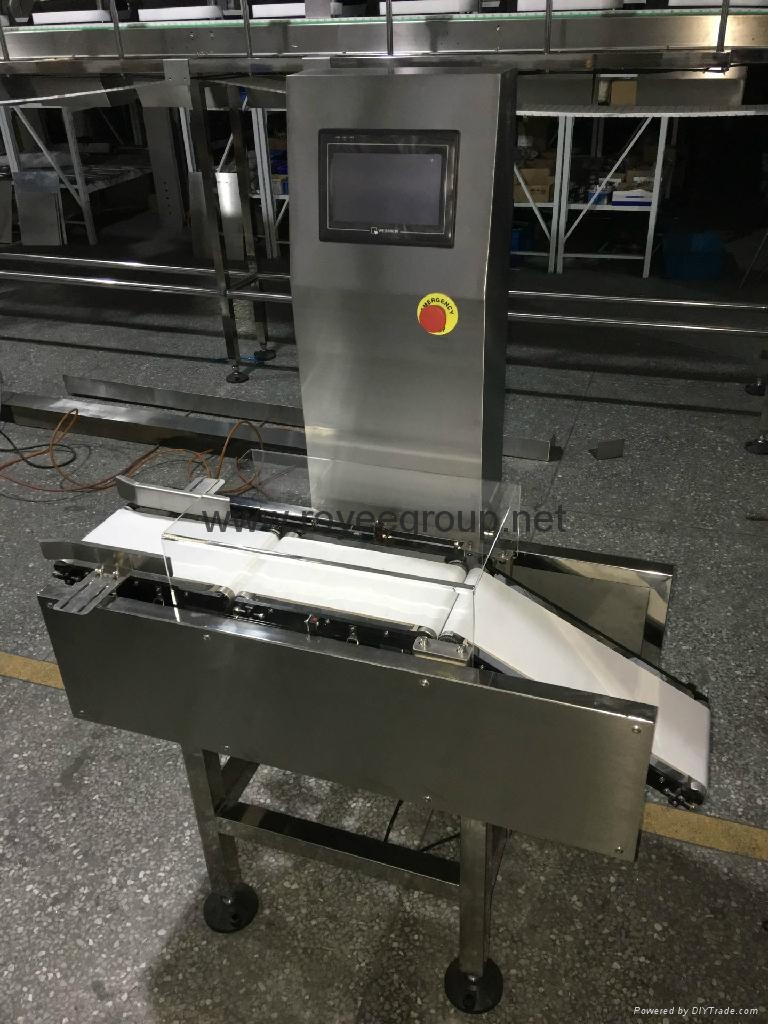

Product Image
