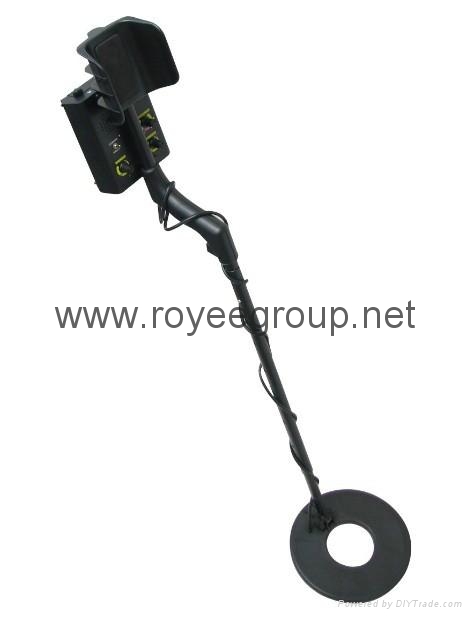

Gold and silver seach undergound metal detector GC-1008
|
Detect distance
|
One roud coin(RMB), not deeper than 6cm
|
|
60x60x1cm big steel panel, its max detecting distance is 0.8m
|
|
Working current
|
≤30mA, max current ≤45mA
|
|
Working frequency
|
15khz±2khz
|
|
Voltage
|
12-18V
|
|
Weight
|
2.0kg( exclude battery)
|
|
Working temperature
|
0-+40°C
|
|
Size
|
Diameter 20.5cm, thickness2.5cm
|
|
Battery
|
Six battery/1.5V
|
2. Main features
a. Deep detecting range, light weight, long life
b. Distinguishing ferrous and non ferrous metal accuratly with no false alarm
c. Ground Balance can eliminate "mineralization reaction” impact, and improve detecting deep depth and accuracy
d. Multiple and powerful functions
3. Specification
a.Max detecting depth: 1.5meter---small coil
b.Signal frequency:6.99khz
c.Volume frequency:450hz
d.Working current:12CV"AA"8x1.5v
e.Power cosumption:0.6w
f.Weight:3kg
4. Appalication
a. Security checks
b. Express searches the public security departments of criminal
c. Raw materials, fuel, food, metal and foreign body detection
d. Checking mail, baggage and parcel of the metal items
e. Detecting underground pipes, cables
f. Archeology, mineral prospecting
g. found buried in the ground hidden treasures of gold and silver and metal artifacts
