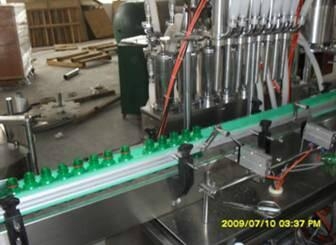

Liquid filling machine
Main parts:
1.rack 2.filling head 3.filling vat 4.conveyor 5.bottle blocking equipment 6.photoelectrical detector 7.Motor 8.reducer 9.chain 10.drive organ 11.ylon transfer line etc.
The filling head is 8 heads, single line conveying (the number of heads is customized), to meet production requirement, and won’t damage machine because of raising speed .Adopts magnetic drive pump. make the effect of filling accurate and high output.
Summarize:
RY-8 Automatic volumetric linear filling machine is new generation utility product, developed from most advanced technology to suit to market demand. The machine adopts 304 stainless steel . Economic utility, low plant cover, the machine is widely applied to liquid packing in the market of pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet to the requirement of GMP.
Features:
1. Adopts magnetic drive pump to fill, suitable for all kinds of liquid, high precision;
2. PLC control system, frequency conversion adjusting speed, high degree automation.
3. No bottle, no filling, auto count the quantity. And have the anti-drop device.
4. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
5. Filling head is equipped with anti-dropping equipment.
6. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.
7. The whole machine meets GMP requirement
Parameters：
|
Model
|
RY8
|
|
Filling nozzle
|
8
|
|
volume
|
100ml-1L
|
|
capacity
|
3,000 bottles /hour
|
|
Filling precision
|
≤±1%
|
|
Power supply
|
380V 50/60Hz
|
|
power
|
≤2.2kw
|
|
Air pressure
|
0.4-0.6MPa
|
|
N. W.
|
650kg
|
|
dimension（mm）
|
1850*850*1800
|
